AG500 GNSS Automatic Navigation System

SunNav's AG500 GPS Automatic Navigation System with automatic turns can provide you with high performance autopilot for non-driving vehicles such as tractors, sprayers, sweepers and harvesters.

We differ..

No external antennas and no subscription. RTK accuracy everywhere and always.
Features Greek menus and remote programming of all accessories. Additional ISOBUS capability. Provide free remote support and free installation throughout mainland Greece except for Peloponnese where there is an additional charge.


Features

  • Easy and fast installation
  • Very simple calibration
  • Don't have to change hydyraulic system
  • Can be switched in different vehicles
  • 3m on the line
  • Operation accuracy
  • Cloud data storage
  • AB Line files can be shared in different vehicles

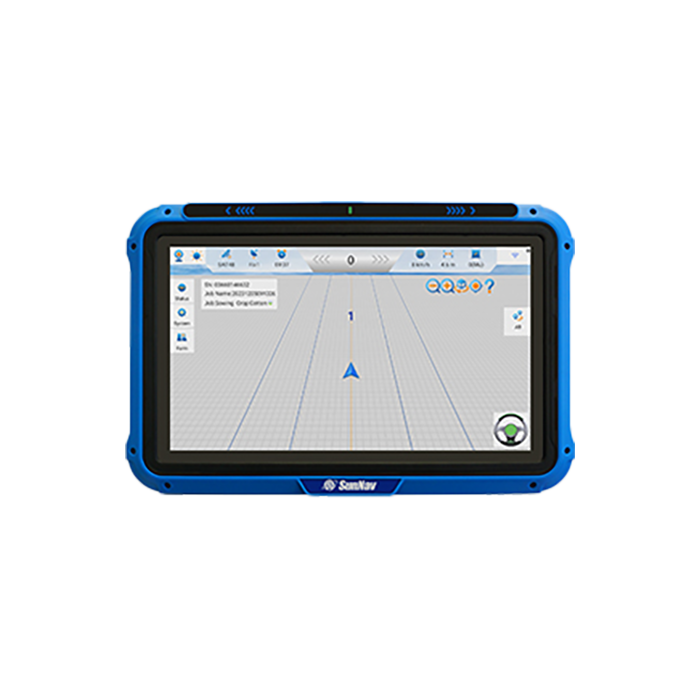

T101 Console


Operating System: Android 9.0 /6.0
LCD: 10.1’’ Capacitive Touch Screen
Wi-Fi: 2.4GHz IEEE 802.11 b/g/n
Bluetooth: V4.0
Serial Port: RS232 x2, RS485 x1
CAN Port: CANx2 (J1939, CANOpen, ISO15765)
Dustproof & Waterproof: IP-65
Dimension: 281mmx181mmx42mm
Weight: 1.5kg

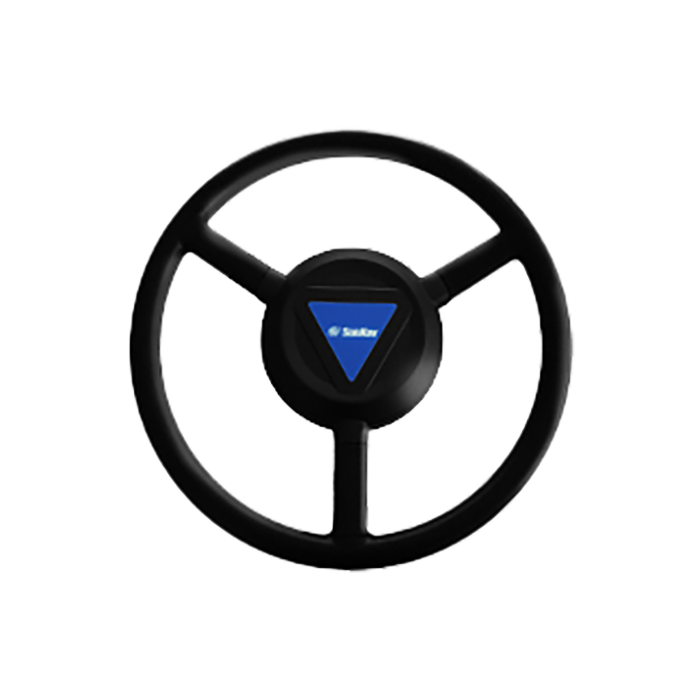

EMS4 motor wheel


The EMS4 is an electric motor steering wheel. It is designed for easy-to-install operation. With high-torque, direct-drive electric motor, EMS4 can give an accuracy 2.5cm RTK.

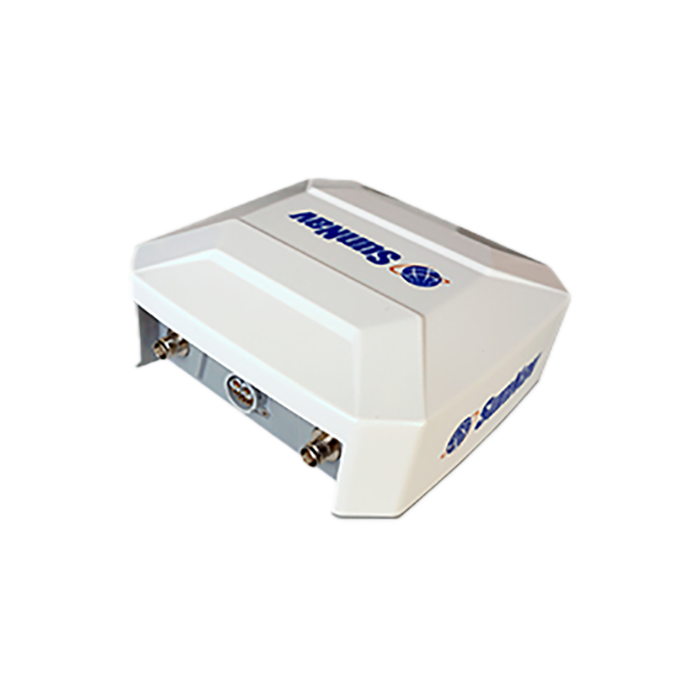

GNSS Antenna

Built-in GNSS board,IMU sensor,
Radio,Antenna
Physical Dimension:179×179×69mm
Weight: 1.1Kg
Protection Level: IP67
Supply Voltage: DC 9~36V
Signal: GPSL1/L2，BDS B1/B2，GLONASS L1/L2，
Galieo E1/E5a/E5b，QZSS L1/L2/L5
Data Format: NMEA 0183,Unicre
